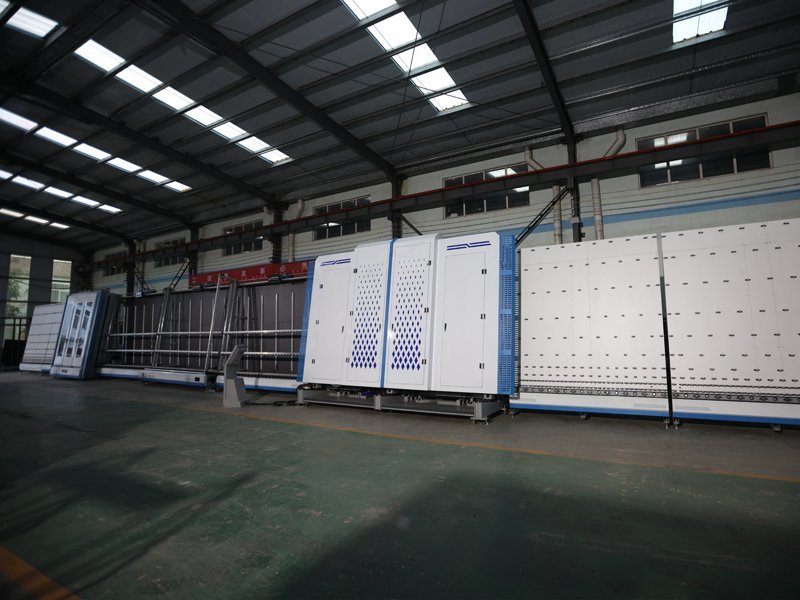

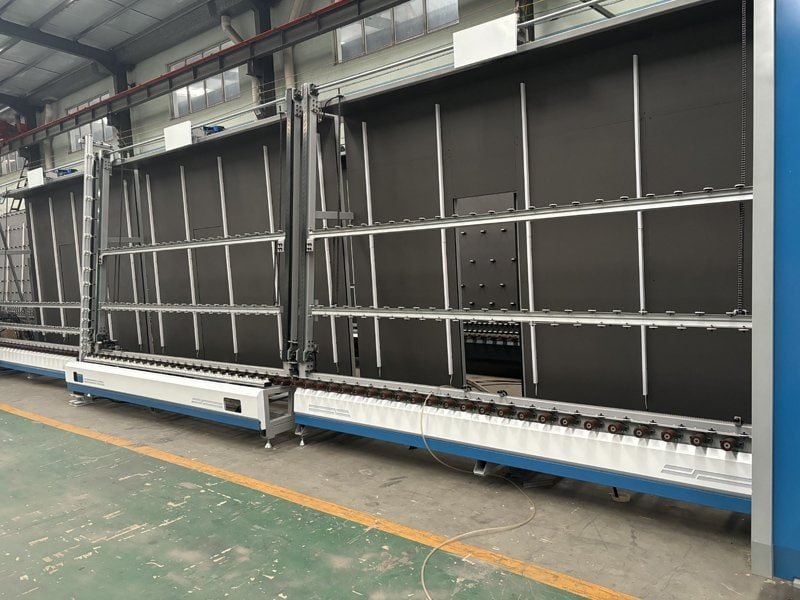

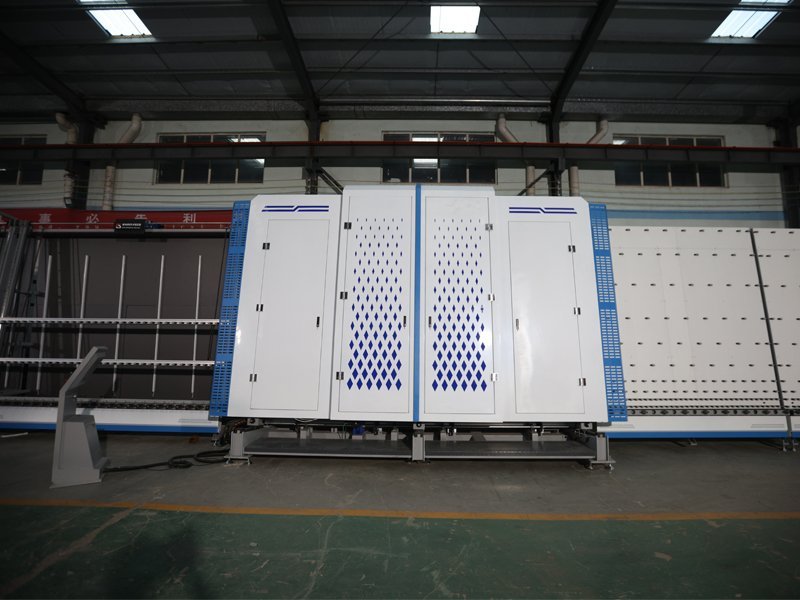

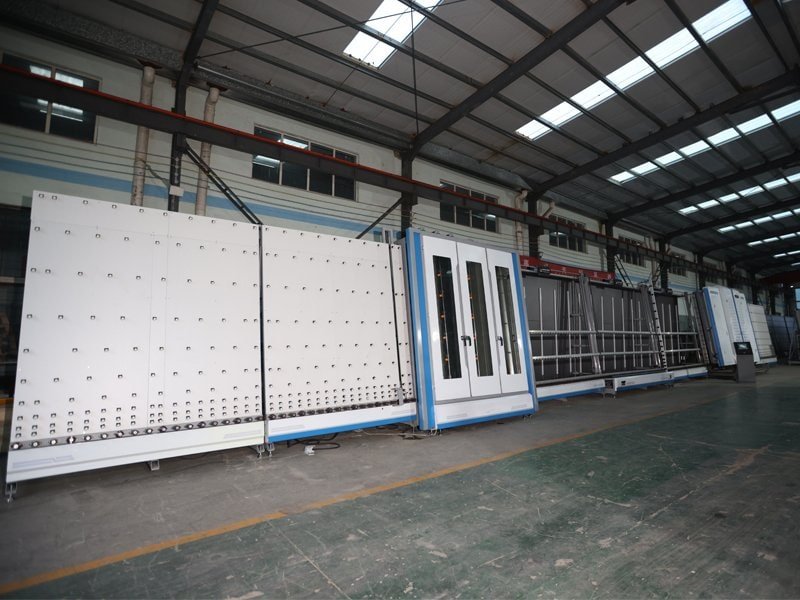

Automatic All Beam Gas Filling IG Production Line
Available Models:
1.All beam high end insulating glass production line for quality double&triple glass processing
2. Online Gas Filling Line, the gas filling rate over 90%.
Key Features
Beam-type automatic lifting conveying, servo motor precise control.
Overcomes friction trace of back wheel for large glass conveying.
Full PLC control system with touch screen interface.
Automatic identification of coated and Low-E glass film layers.
Panel pressing adopts four servo motors with four-axis linkage.
Automatically adjusts depends glass length and height.
Optimizes inflation space to save argon consumption.
Ensures argon aeration content of insulating glass ≥85%.
Three pairs of cleaning glass brushes with variable speed drive (optional).
Cleaning machine made of stainless steel and corrosion-resistant materials.
Customizable for large and small insulating glass units (optional).
All electrical components from internationally renowned brands.
Outer panel designed with central support for easy maintenance.
Double&Triple , and Stepped Glass Making
Technical Specifications
JYHLCH-2025 - Detailed Specifications
