Desiccant Filling Machine

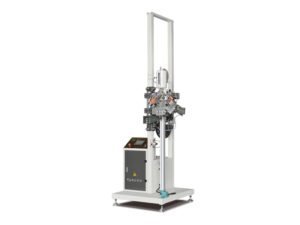

Automatic Desiccant Filling Machine

Available Models:

JYG-03

1.This machine is used for automatic filling of desiccant into aluminum spacers

2.With PLC intelligent control and advanced feeding system


Chat Online

Key Features

PLC control system with user-friendly interface.

Key components adopt imported brands for reliability.

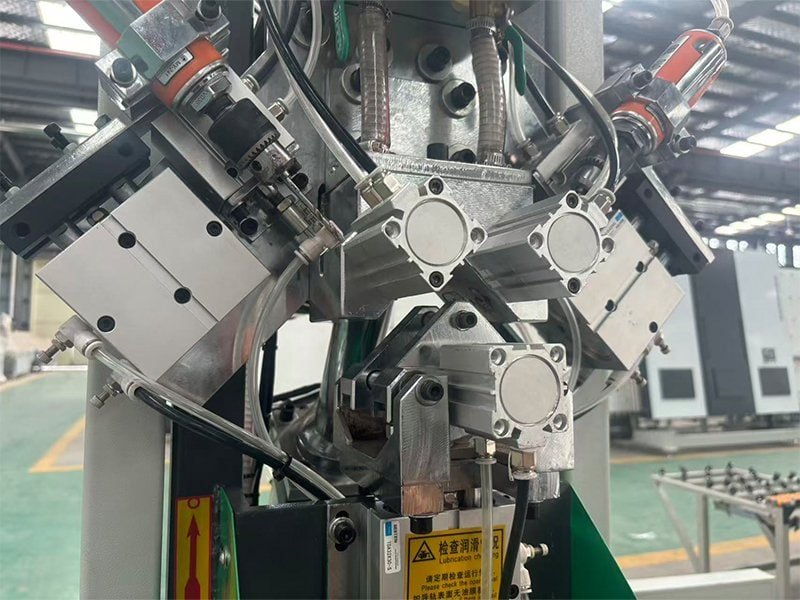

Automatic hole drilling, filling, and sealing in one process.

Filling volume adjustable according to spacer size.

Exclusive feeding system allows continuous or supplementary filling.

Stable operation with high precision.

Chat Online

Technical Specifications

JYG-03 - Detailed Specifications

Power supply
220V / 50Hz
Total power
1.0 kW
Working air pressure
0.5 ~ 0.8 MPa
Max. Alu-bar size
2000 × 2000 mm
Min. Alu-bar size
350 × 350 mm
Molecular sieve diameter
0.5 ~ 0.8 mm
Overall dimension
900 × 1200 × 3600 mm
Weight
420 kg
